Boiler Used Vertical Type HRSG
For vertical waste heat boiler, all heating surface tubes are arranged horizontally, the flue gas flow is vertical flow.

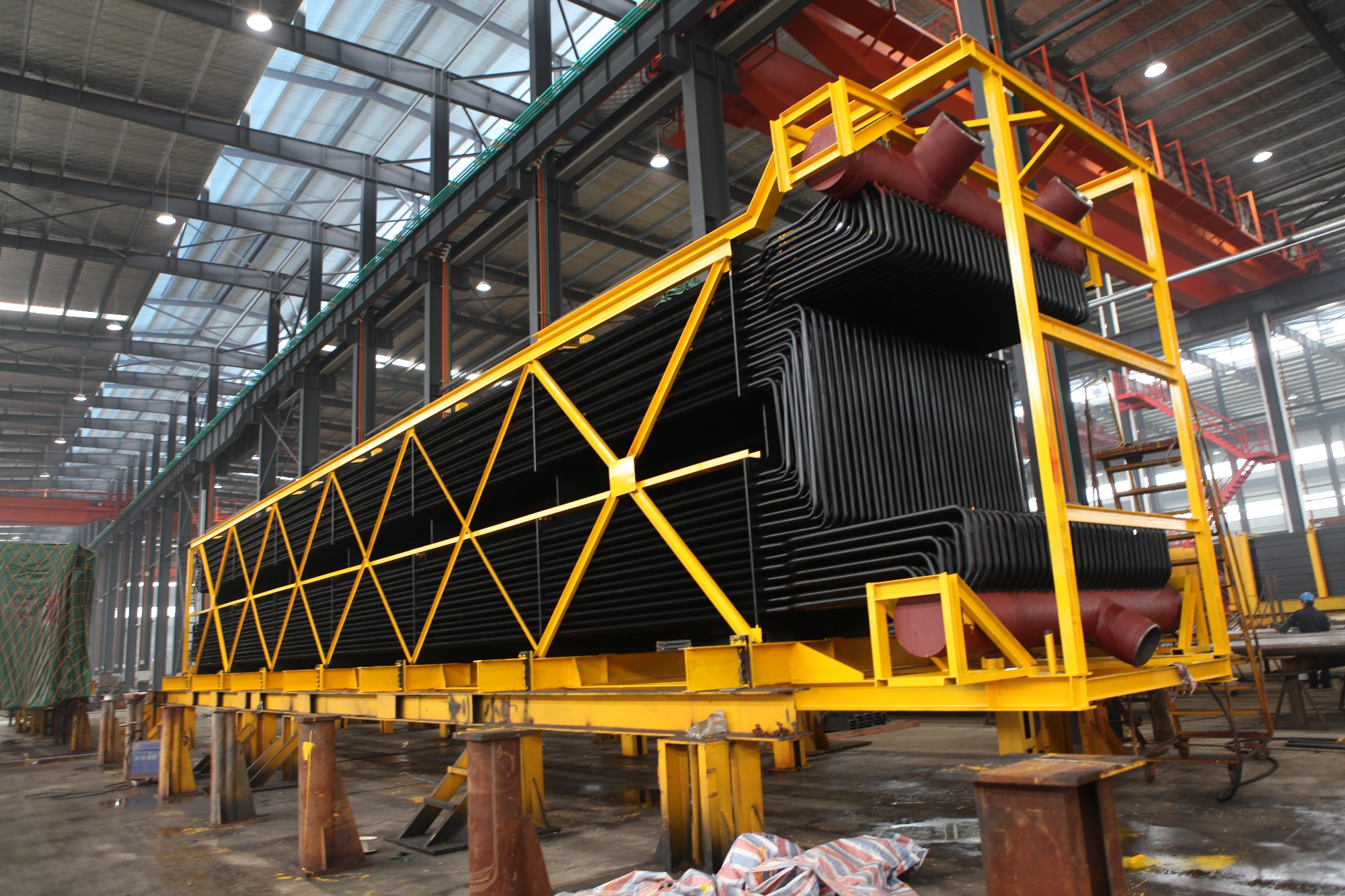

The waste heat boiler adopts a modular structure, the heating surface consists of staggered spiral fin tubes arranged horizontally and two headers, all levels of heating surface's sizes are basically similar. Internal inspection can be carried out by walking on the finned tube without the use of scaffolding, which is a unique feature of vertical waste heat boilers. Each heating surface has one inlet header and one outlet header, betweens the headers there will be one row or multiple rows of fin tubes. The inlet header or outlet header can be placed in front of the boiler or behind the boiler, and the tubes can be arranged in different rows to facilitate the full absorption of flue gas heat.
